Walkie Transfer Carriages

As low as $5,132.00
Only %1 left
SKU
WTC

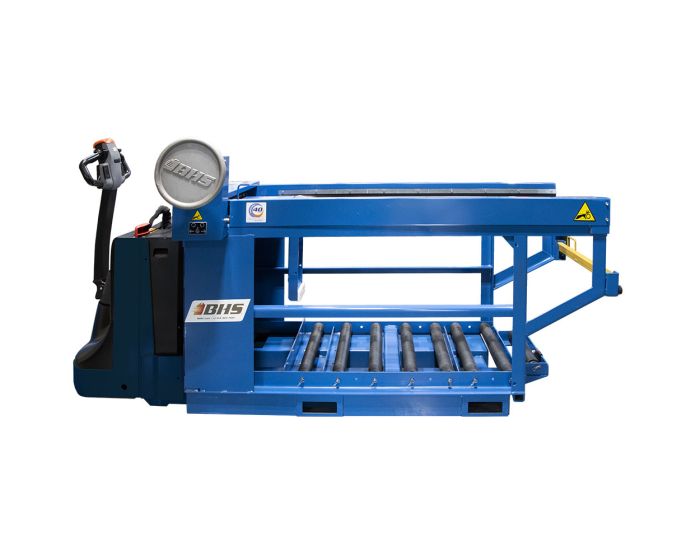

Manual industrial forklift battery changer with one forklift battery compartment and is mounted to your pallet truck.

The BHS Walkie Transfer Carriage (WTC) is a non-powered battery changer designed for smaller battery fleets. The WTC mounts to the user’s existing pallet truck to change batteries in side-extraction applications. The WTC comes in three models and offers a dependable and versatile battery changing system at an affordable cost. The BHS Walkie Transfer Carriage's heavy duty frame construction is built to handle today's demanding environments. Large 2.4" diameter rollers are standard on a WTC, as well as its hand wheel for positive control of the push/pull extractor arm. The WTC has poly-coated rollers to reduce corrosive build-up and extend product life.

Features & Benefits

  • Heavy-duty construction for added reliability
  • Mounts easily to powered pallet truck—consult BHS for pallet truck specifications
  • Simple design made for easy maintenance
  • Large 2.4” (61 mm) diameter rollers standard
  • Hook and chain extraction
  • Hand wheel for positive control of the extractor arm
  • Spark-proof, poly-sleeved rollers reduce corrosive build-up and extend product life (WTC-24 only)
  • Battery Containment Bar encloses compartment to secure battery during transport
  • Rubber Bumpers protect the industrial lift truck fleet during battery change-out
  • Extractor Arm Latch automatically locks extractor arm in place when retracted

WTC-24

WTC-30

WTC-36

Max. Load Capacity 1

2,950 lb / 1338 kg

3,400 lb / 1542 kg

4,000 lb / 1814 kg

Battery Attachment

Hook & Chain

Hook & Chain

Hook & Chain

Primary Drive Reduction

4.5 to 1

4.5 to 1

4.5 to 1

Primary Drive Chain Size

#35

#35

#35

Rated Draw Bar Pull

50 lb / 23 kg Force @ Handwheel = 600 lb / 272 kg @ Extractor Arm

50 lb / 23 kg Force @ Handwheel = 600 lb / 272 kg @ Extractor Arm

50 lb / 23 kg Force @ Handwheel = 600 lb / 272 kg @ Extractor Arm

Full Travel Arm 2

22 Revolutions of Handwheel

22 Revolutions of Handwheel

22 Revolutions of Handwheel

Push/Pull Drive Chain Size

#50

#50

#50

Extractor Arm Drive Device

12” / 305 mm Diameter

Finger Safe Handwheel

12” / 305 mm Diameter

Finger Safe Handwheel

12” / 305 mm Diameter

Finger Safe Handwheel

Minimum Service Aisle Width Required 3

12’ / 3.66 m

12’ / 3.66 m

12’ / 3.66 m

Roller Diameter

2.4” / 61 mm

2.4” / 61 mm

2.4” / 61 mm

Roller Shaft Size

7/16” Hex / 11 mm

3/4” Hex / 19 mm

3/4” Hex / 19 mm

Battery Width

6” Min / 23” Max
152 mm Min / 584 mm Max

6” Min / 29” Max

152 mm Min / 737 mm Max

6” Min / 35” Max

152 mm Min / 889 mm Max

Battery Length 4

12” / 305 mm Min

12” / 305 mm Min

12” / 305 mm Min

Overall Length

64.25” / 1632 mm Standard

71.25”/ 1810 mm CAN-7 Option

78.25“ / 1988 mm CAN-14 Option

64.25” / 1632 mm Standard

71.25”/ 1810 mm CAN-7 Option

78.25“ / 1988 mm CAN-14 Option

64.25” / 1632 mm Standard

71.25”/ 1810 mm CAN-7 Option

78.25“ / 1988 mm CAN-14 Option

Overall Width

37.5” / 953 mm

43.5” / 1105 mm

49.5” / 1257 mm

Overall Height

46.25” / 1175 mm

46.25” / 1175 mm

46.25” / 1175 mm

Base to Roller Height

3” / 76 mm

3” / 76 mm

3” / 76 mm

Roller Width

24.5” / 622 mm

30.5” / 775 mm

36.5” / 927 mm

Extended Arm Reach

(Beyond Roller Bed)

4” / 102 mm Standard

11” / 279 mm CAN-7

18” / 457 mm CAN-14

4” / 102 mm Standard

11” / 279 mm CAN-7

18” / 457 mm CAN-14

4” / 102 mm Standard

11” / 279 mm CAN-7

18” / 457 mm CAN-14

Rated Draw Bar Pull

1,000 lb / 453 kg

1,000 lb / 453 kg

1,000 lb / 453 kg

Average Holding Force

750 lb / 340 kg Vacuum

775 lb / 351 kg Magnet

1,000 lb / 453 kg Vacuum

775 lb / 351 kg Magnet

1,000 lb / 453 kg Vacuum

775 lb / 351 kg Magnet

Service Weight (unloaded)

525 lb / 238 kg

635 lb / 288 kg

700 lb / 317 kg

Notes: BHS recommends that high-speed travel be disabled on pallet truck and maximum speed set at turtle or lowest setting.

  1. Verify capacity of pallet truck being used at the specified load center. Load center increases by 0.5” (13 mm) for every inch of battery over 38” (965 mm) in length. Certain options may affect load capacity. Consult factory.
  2. Standard length (non-cantilever units) only.
  3. Varies with size and length of pallet truck and selected WTC options.
  4. Consult factory for additional options.

Servicing Trucks with Outriggers

7” Cantilever (WTC-CAN-7)
Extends extractor arm reach an additional 7” (178 mm) and is ideal for use with outriggers
7” Cantilever & 6” Extension Bed (WTC-CAN-7-6)*
7” (178 mm) additional extractor arm reach is ideal for use with outriggers, and 6” (152 mm) bed extension accommodates longer batteries
14” Cantilever & 6” Extension Bed (WTC-CAN-14-6)*
14” (356 mm) additional extractor arm reach is ideal for use with outriggers, and 6” (152 mm) bed extension accommodates longer batteries
14” Cantilever & 8” Extension Bed (WTC-CAN-14-8)*
14” (356 mm) additional extractor arm reach is ideal for use with outriggers, and 8” (203 mm) bed extension accommodates longer batteries

Options for Mounting the WTC to the Host Truck

Fork Pocket/Tongue Kit (WTC-FP-C)
Designed for applications where a pallet truck can’t be dedicated full time to the battery changing process. Includes a welded Tongue Kit to enhance stability. Standard pallet truck rear-entry of forks.
Three-Way Fork Pocket (WTC-FP-3)
Designed for multi-purpose and multi-position. Side-entry fork pockets are designed for use with SDCB lift trucks. Rear-entry fork pockets can also be used with a pallet truck host truck when the bolt-on Tongue Kit is attached.
Permanent Mounting (WTC-MPJ)*
Factory welding to customer-supplied pallet truck
Bolt-On Kit (WTC-BLTON)
Semi-permanent mounting solution when pallet truck is occasionally required for other tasks

Servicing Roller Heights Outside Standard WTC Range

Uncoated Rollers (WTC-UNCTD)
Reduces roller height by 0.25” (6 mm) to accommodate low battery compartments (Available on WTC-24 model only)
Two-Tier Battery Compartment (WTC-2TIER)*
Combines two roller compartment levels in one unit, and is ideal for a combination of narrow aisle trucks and counter-balance trucks
Drop-in Rollers (WTC-DIR)*
Increases roller height up to 10” (254 mm) to reach battery compartments beyond pallet truck maximum lift, and includes the appropriate staging stand for drop-in rollers, DIR Centering Angle, and DIR Retainer Plate Note: Recommended when WTC-2TIER is not feasible and extraction from multiple battery compartment heights is required
Drop-in Roller, Extended (WTC-DIR-LG)*
Increases roller height up to 10” (254 mm) to reach battery compartments beyond pallet truck maximum lift, and is for use with 6” (152 mm) or 8” (203 mm) bed extension
Base Elevation (WTC-BSELV)*
Increases roller height up to 10” (254 mm) to reach battery compartments beyond pallet truck maximum lift
Low Profile Bolt-in Slide (WTC-LP)*
Cost effective WTC bolt-in slide option allows roller height to be adjusted 0.88” (22 mm) lower than standard unit

Added Convenience

Chain Guard Rubber Flap Kit (WTC-RGD)
Covers chains and sprockets to prevent dirt and debris from accumulating on or around chains and sprockets
