Wastewater Recycling Systems

For pricing, contact us by calling 314-696-0200 or Request a Quote.
SKU
WRS

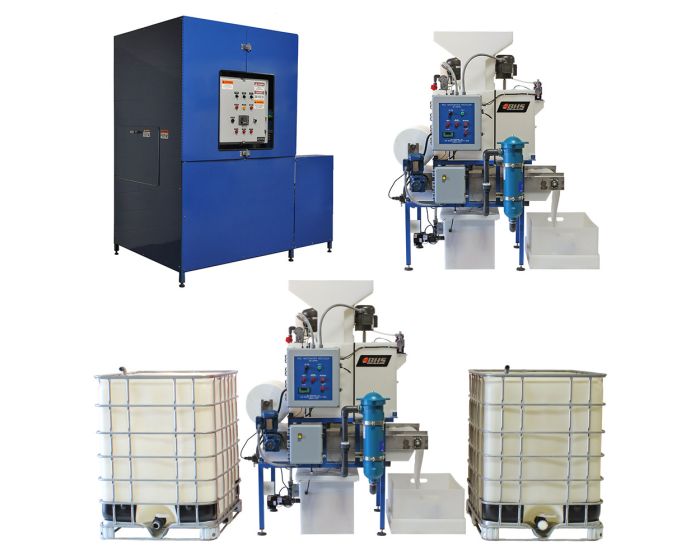

The BHS Wastewater Recycling System (WRS) is an automated, single structure, recycling system, providing on-site wastewater management. The WRS treats, filters and processes industrial wastewater to remove hazardous contaminants and particulates, ensuring that the recycled water is clean. Call for Pricing.

The BHS Wastewater Recycling System (WRS) is an automated, single structure, recycling system, providing on-site wastewater management. The WRS treats, filters and processes industrial wastewater to remove hazardous contaminants and particulates, ensuring that the recycled water is clean.

As the WRS receives dirty wastewater, an automatic pH adjustment control is activated to raise the water to a pH level of 9.5. The wastewater is then treated with a reactive separating agent to encapsulate the contaminants and form large flocculent. Using gravity flow, the treated water is separated from the flocculent by passing through an automatic deep bed filter. The captured sludge is conveyed to a sludge catch bin, where it dries and hardens into a non-hazardous, non-leachable sludge. The sludge is certified landfill friendly for standard trash disposal. The clean water can either be drained or held in a storage tank for reuse. This process can be performed in batches or in a closed loop system, continuously supplying clean water to a Battery Wash Cabinet (BWC).

Model WRS-1 is available in 460 V / 3 ph / 60 Hz only.

Features & Benefits:

  • Reclaims wastewater at a rate of two gallons per minute
  • Automatic pH adjustment control neutralizes water for removal of hazardous materials
  • Specially formulated reactive separating agent used in flocculation process removes soils, hydrocarbons, metals, etc. from wastewater
  • Sludge generated is non-hazardous, non-leachable, and certified landfill friendly for standard trash disposal
  • Wash water effluent micron filtered both before & after treatment
  • Produces clean, reusable water
  • Visual and audible alarms for operator notification on low supply of paper, flocculent, or caustic
  • Alarm activation disables WRS, preventing untreated water from going down the drain
  • Ozone purification removes bacteria for odor control
  • Independently lab tested and approved to safely process wastewater while meeting EPA and NJDEP regulations
  • WRS-2-KIT includes wastewater transfer pump

WRS-1

WRS-2

WRS-2-KIT

Input Voltage

460 V / 3 ph / 60 Hz

120 V / 1 ph / 60 Hz

120 V / 1 ph / 60 Hz

AC Current Draw

15 A

50 A,

2 separate circuits required: (1) 20 A and (1) 30 A

50 A,

2 separate circuits required: (1) 20 A and (1) 30 A

Water Pump Capacity

75 psi / 13 gal/min

14 gal/min

14 gal/min

Water Pump Motor

1 hp

1/10 hp

1/10 hp

Sump Pump Capacity

15 gal/min

42 gal/min

42 gal/min

Reservoir Capacity

185 gal / 700 L

Water Outlet

0.75” / 19 mm

0.5” / 13 mm

0.5” / 13 mm

Return Inlet

1”/ 25 mm

0.75” / 19 mm

0.75” / 19 mm

Filter Capacity

9 ft2

9 ft2

9 ft2

Overall Width

51.5” / 1308 mm

48” / 1219 mm

48” / 1219 mm

Overall Length

77.5” / 1969 mm

72” / 1829 mm

72” / 1829 mm

Overall Height

89” / 2261 mm

89” / 2261 mm

89” / 2261 mm

Weight

2,100 lb / 953 kg

550 lb / 249 kg

550 lb / 249 kg

pH Metering Type

Diaphragm

Diaphragm

Diaphragm

Dirty Water Tank

330 gal / 1249 L

Clean Water Tank

330 gal / 1249 L
(includes recycle module)

Mobile Tank (WRS-MT)
330 gal (1249 L) Portable tank for transport of wastewater from other locations
Clean Water Holding Tank (WRS-MT2)
330 gal (1249 L) Portable tank stores clean water intended for reuse, and includes recycle module, pressurization pump, and ozone purification Note: Option available on WRS-2 only
